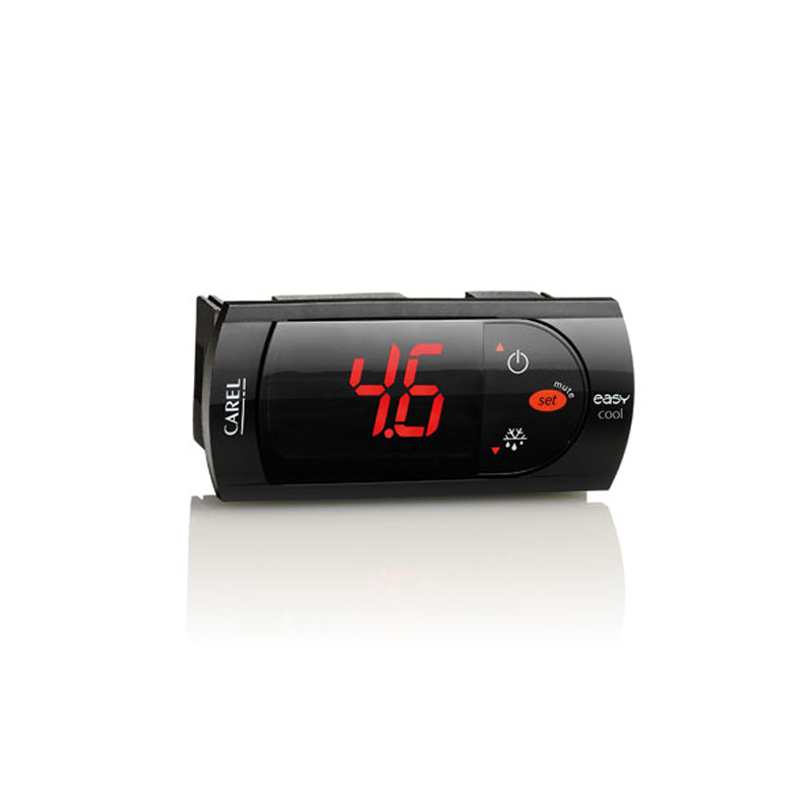

CAREL Easy cool รุ่น PZD*S*P0*1

แบรนด์

CAREL

ดาวน์โหลดเอกสาร

CAREL Easy cool PZD*S*P0*1 Brochure

Additional information

Power supply

115 Vac +10 / -15% 50/60 Hz
230 Vac -10% + 15% 50/60 Hz

Connections

Screw terminals 5 mm pitch
(0.5 mm² cable section to 2.5 mm²)

Rated power

81 x 39 mm

NTC probe

input

Probe type

NTC Std CAREL 10 KΩ at 25 °C

Maximum

nominal current per terminal 12 A.

Max length serial cables

1 km

Easy cool

The ideal solution for static plug-in refrigeration units at normal temperature (above 0 °C)

Thermostat with preloaded set point (+3 °C) and defrost by stopping the compressor.

The following parameters are accessible on entering the password:

  • control
  • compressor protection
  • defrost
  • alarms

The controller can be fully programmed using just 19 parameters.
