Additional information
| Temperature Ratings | Ambient: -40°F to 140°F (-40°C to 60°C). |
|---|---|
| Humidity Ratings | 5% to 95% RH noncondensing |
| NOTE | For 175 lb-in. (20 N•m) models: 3/4 in. or greatershaft diameter recommended |
| Weight (Kg) | 3.2 |

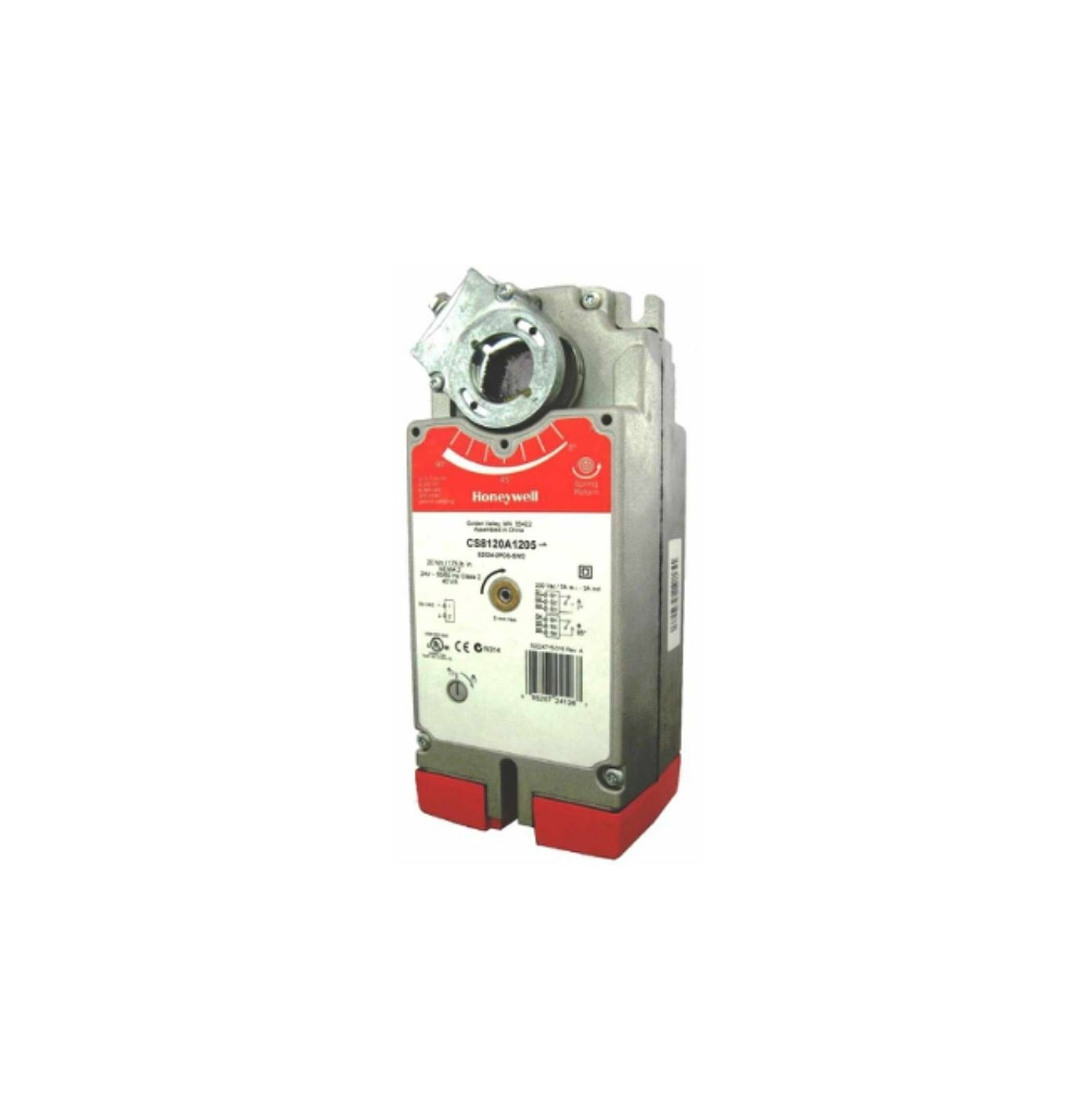

HONEYWELL S05, S10, S20 SERIES Spring Return Direct Coupled Actuators
HONEYWELL S05, S10, S20 SERIES Spring Return Direct Coupled Actuators
| Model | Rating N | Add to Cart |
|---|---|---|
| CS7505A2008 | 5 | |
| CS7510A2008 | 10 | |
| CS7520A2007 | 20 |
FEATURES
- Brushless DC submotor with electronic stall protection for floating/modulating models.
- Brush DC submotor with electronic stall protection for 2-position models.
- Self-centering shaft adapter (shaft coupling) for wide range of shaft sizes.
- Models available with three torque ratings: 44 lb-in. (5 N•m), 88 lb-in. (10 N•m), and 175 lb-in. (20 N•m).
- Models available for use with two-position, single pole single throw (spst), line-voltage or low-voltage controls.
- Models available for use with floating or switched single-pole, double-throw (spdt) controls.
- Models available for use with proportional current or voltage controls.
- Models available with combined floating/modulating control in a single device.
- Models available with adjustable zero and span.
- Models available with line-voltage internal and switches.
- Access cover to facilitate connectivity.
- Metal housing with built-in mechanical end limits.
- Spring return direction field-selectable.
- Shaft position indicator and scale.
- Manual winding capability with locking function.
- UL (cUL) listed and CE compliant.
- All Models are plenum-rated per UL873.
