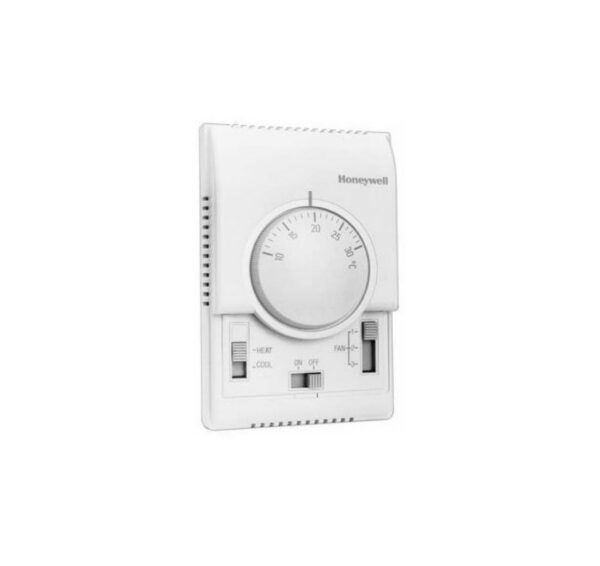

Honeywell เทอร์โมสแตท อุปกรณ์สำหรับควบคุมอุณหภูมิ รุ่น T6374C1004

banner

Honeywell เทอร์โมสแตท อุปกรณ์สำหรับควบคุมอุณหภูมิ รุ่น T6374C1004

แบรนด์

HONEYWELL

ดาวน์โหลดเอกสาร

Product Manual : T6374C1004

Description

  • Dual diaphragm sensing element ensures close temperature control for all loads and applications
  • Attractive modern styling makes this thermostat ideal for locating in the occupied space, particularly in offices or hotels
  • Versions with heat anticipator, which improves temperature control in both heating and cooling operation
  • Thermostat mounts directly onto a wall or conduit box
  • Slide switches allow manual control of system operation and fan speed
  • Versions available with fixed deadband between heating and cooling operation
  • Optional extras:
    • range stops
    • tamperproof cover

Additional information

Model

T6374C1004

Setpoint range

10…30oC. By means of a large setpoint
dial

Supply voltage

230 V~, 50…60 Hz

Thermostat

S.P.D.T.

Performance

Typical differential 1K (heating & cooling)
at 20oC at 50% load with anticipator
connected

Electrical ratings

4(2) A, 230 V~
Typical loads are fans, zone valves and
relays

Operational life

Greater than 100,000 cycles (all loads)
for thermostat contacts at 230 V~
Greater than 6,000 operations for all
manually operated switches
