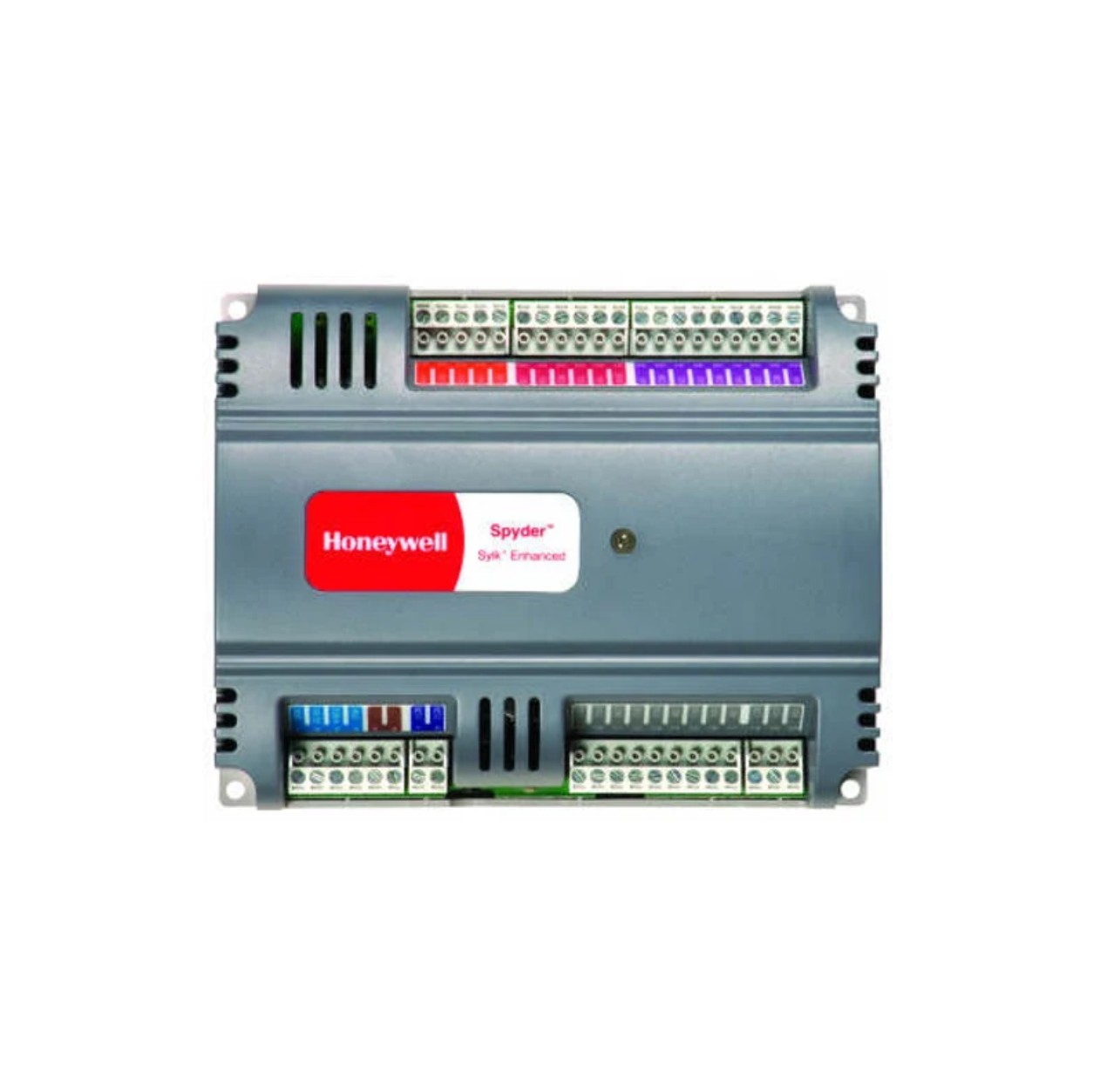

HONEYWELL Webs BMS Controller รุ่น PUB6438SR/U

แบรนด์

HONEYWELL

รุ่น

PUB6438SR/U

ดาวน์โหลดเอกสาร

Product Manual : PUB6438SR/U

Additional information

Model

PUB6438SR/U

Comments

Onboard 20 VDC power supply

Dimension (cm.)

17.4 x 13.8 x 5.7

Frequency

50 Hz; 60 Hz

Operating Humidity Range (% RH)

5 to 95% RH, non-condensing

I/O count

6 UI, 4 DI, 3 AO,8 DO (relay)

Power Consumption

5 VA

Voltage

24 Vac with a valid range of 20 to 30 Vac

Operating Temperature Range

-40F to 150 F, (-40 C to 65.5 C)

Shipping and Storage Temperature Range

-40 F to 150 F, (-40 C to 65.5 C)

FEATURES

  • Features a Function Block engine, which allows the application designer to program the controller to perform a wide variety of HVAC applications. Capable of stand-alone operation, but can also use BACnet MS/TP network communications. Field configurable and programmable for control, input, and output functions using the NIAGARA FRAMEWORK® software.
