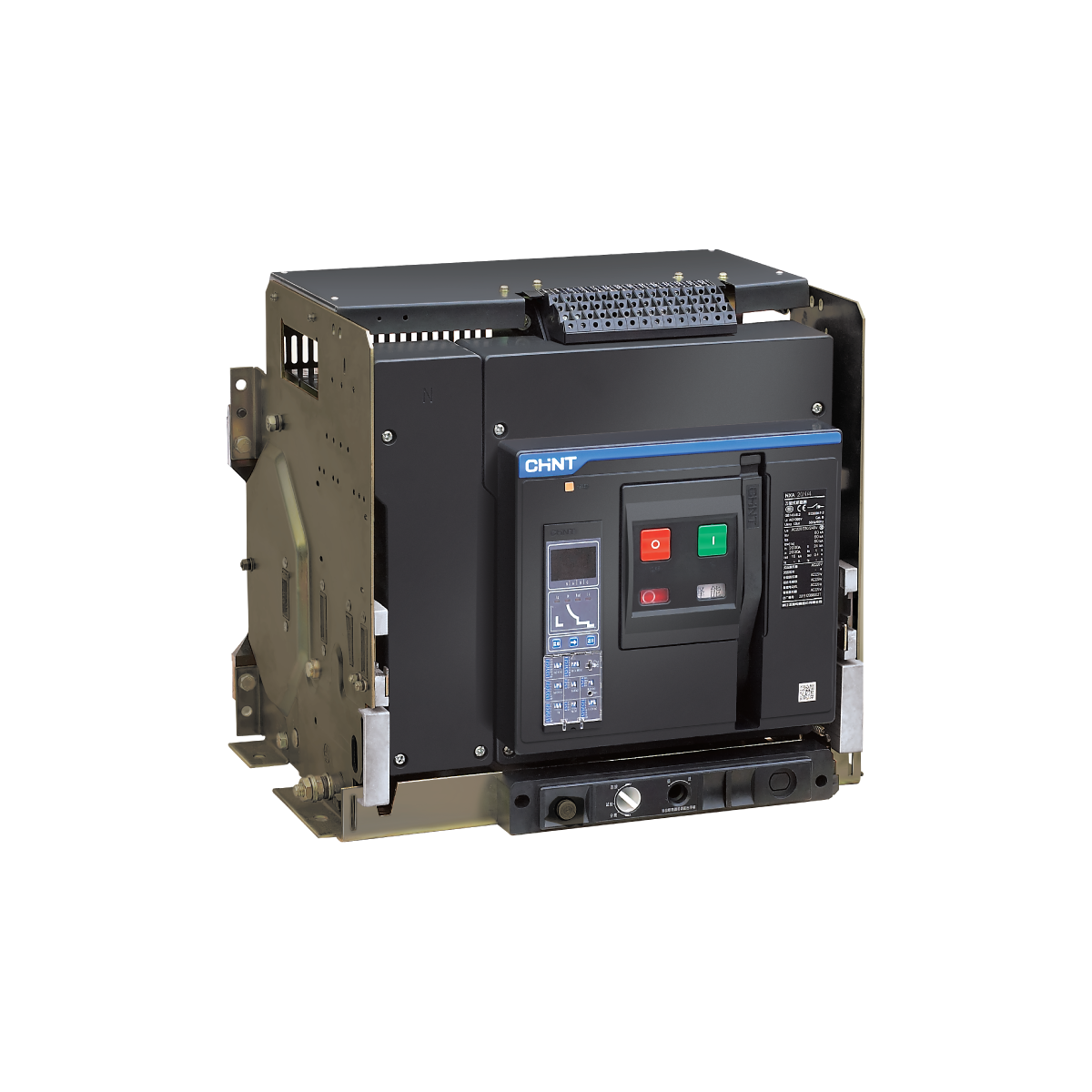

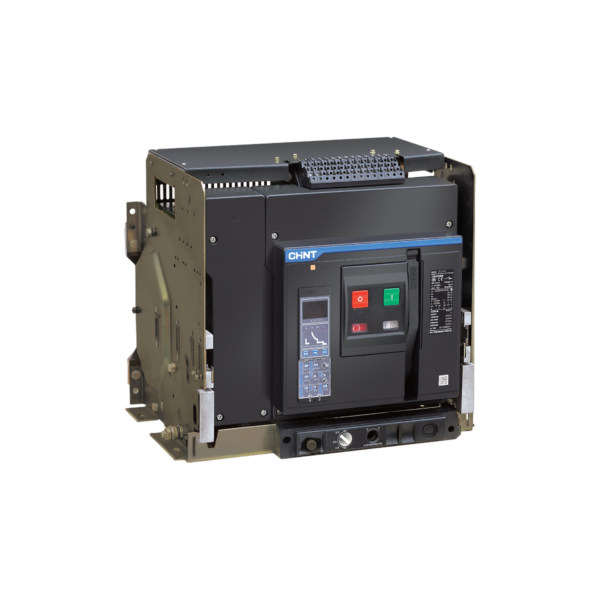

CHINT แอร์เซอร์กิตเบรกเกอร์ (ACB) รุ่น NXA20S20 AF3 AC220/230/240TP
คุณสมบัติ
- ขนาดกระแสโครง (Frame size) : 1600A, 2000A, 3200A, 4000A
- รหัสพิกัดกระแสลัดวงจร (Breaking capacity) : N, S, H
- พิกัดแรงดันทำงาน (Ue) : 380/400/415 VAC
- จำนวนขั้ว (Number of poles) : 3P, 4P
- วิธีการติดตั้ง (Installation method) : draw-out type, fixed type
- การเดินสาย (Wiring type) : horizontal rear connection
- อุณหภูมิทำงาน (Operation temperature) : -5℃~+40℃.
- อุณหภูมิโดยรอบ (ambient temperature) : -45℃ ~+70℃ (M type, A type), -20℃ – +70℃ (P type, H type, CD-1)
- สามารถต้านทานการรบกวนของคลื่นสนามแม่เหล็ก
- มาตรฐาน : (EMC) IEC/EN 60947-2
- ระดับการป้องกัน (Protection grade) : Front IP 20, other side IP 00
