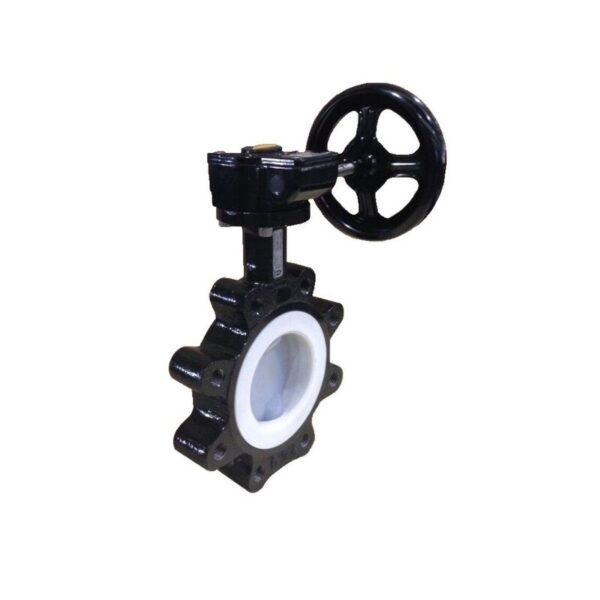

HONEYWELL Lug Type Butterfly Valve

แบรนด์

HONEYWELL

รุ่น

N/A

ดาวน์โหลดเอกสาร

Product Manual : BUTTERFLY VALVE

Clear

ModelSizeAdd to Cart
V4-BFL16-100-24"
V4-BFL16-200-28"
V4-BFL16-250-210"

FEATURES
• Wide size range (DN 50…DN900).
• Operated by lever or gear box. (see Table 1)
• 90° opening / closing operation, 9 positions.
• Cast iron or ductile iron valve body with epoxy coating.
• Wafer or Lug end connection.

SPECIFICATIONS

-Sizes DN50…DN900 (PN16)
DN50…DN300 (PN25)
-Nominal pressure PN16, PN25
-Medium Temperature -10℃ ~ +90℃ Maximum
-Body Material GG25 (for DN50…DN150)
GGG40 (for DN200…DN900)
-Stem Material SS416
-Disc Material Epoxy coated ductile iron GGG40
-Liner Material EPDM
-Gear Box Cast Iron
-Lever Cast Iron
-Detent Nylon
-Leakage Rate No visible leakage
-Medium Type Chilled and Hot water
-Pipe Connection ISO7005-2
