Description

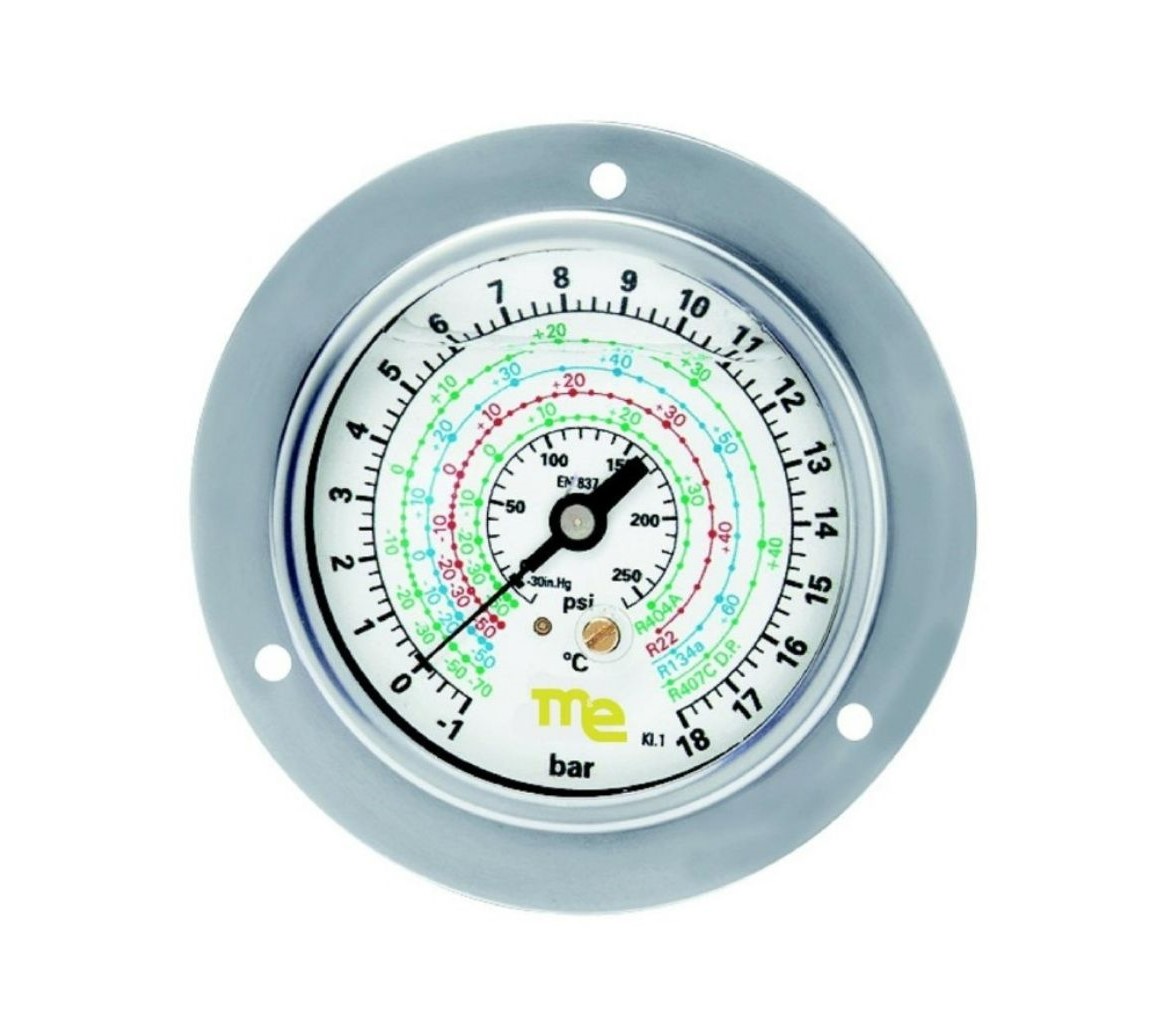

High and Low pressure gauge glycerin-filled with back connection front panel mounting 2 scales for pressure bar + psi ; 3 coloured scale for refrigerants
M&E เกจวัดแรงดันสูง-ต่ำ (Pressure Gauge)
M&E เกจวัดแรงดันสูง-ต่ำ (Pressure Gauge)
| Model | Add to Cart |
|---|---|
| TP-6117H | |
| TP-6117L |
Feature
- Case : AISI 304 stainless steel
- Window : Plexiglass
- Ring : AISI 304 stainless steel, polished
- Socket : 1/4 SAE or 1/8 NPT, bottom, OT 58 brass
- Elastic element : Phosphor bronze
- Movement : Gearing, OT 59 brass
- Dial : White
- Pointer : black oxidized aluminium
- Range : High pressure : -1/+38 bar / Low pressure ; -1/+18 bar
- Accuracy : CL 1,6
- Ambient-T : +15 / +65°C
- Process Fluid-T : max. +65°C
- Process Pressure : max. 75% of full scale value
- Over Pressure : 25% of full scale value
- Blow-Out : EPDM
- Protection : IP65 according DIN EN 60529 / IEC29
