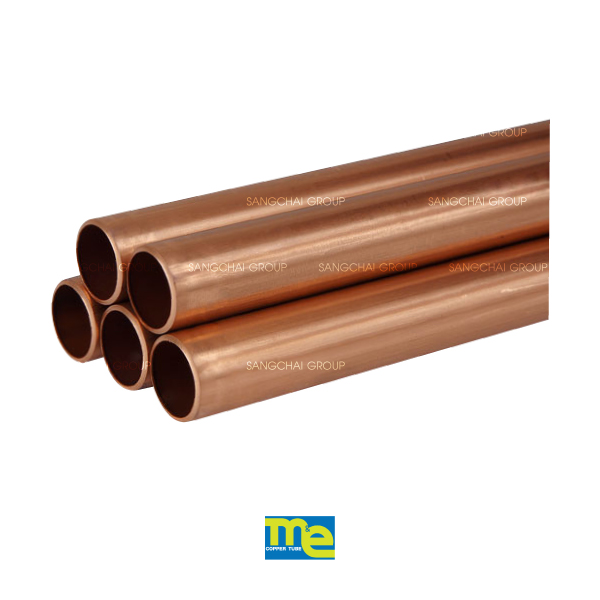

M&E ท่อทองแดงชนิดเส้น TYPE L

banner

M&E ท่อทองแดงชนิดเส้น TYPE L

฿ 1

แบรนด์

M&E

รุ่น

N/A

ดาวน์โหลดเอกสาร

Operators Manual (Copper Tube M&E)

Clear

Copper Size (O.D.)Copper Size (I.D.)ThinknessAdd to Cart
3/8"1/4"0.76
1/2"3/8"0.89
5/8"1/2"1.02
3/4"5/8"1.07
7/8"3/4"1.14
1-1/8"1"1.27
1-3/8"1-1/4"1.40
1-5/8"1-1/2"1.52
2-1/8"2"1.78
2-5/8"2-1/2"2.03
3-1/8"3"2.29
3-5/8"3-1/2"2.54
4-1/8"4"2.79
5-1/8"5"3.18
6-1/8"6"3.56
8-1/8"8"5.08

Additional information

Copper Type

Length

Types L and K tubes are designated by ASTM nominal sizes, with the actual outside diameter(OD) 1/8 inch larger than the nominal size designation. The difference between Type K and Type L tubes are different wall thicknesses. Type K tubes has thicker walls than Type L tubes for any given diameter.

Size ( Metric) : 6MM to 54 MM

Size Range (NB) 1/4″ to 4″

Design Standard for Copper Tubes : JIS H3300 C1220T /  ASTM88

Design Standard for Copper Coils : JIS H3300 C1220T

Material : Copper
