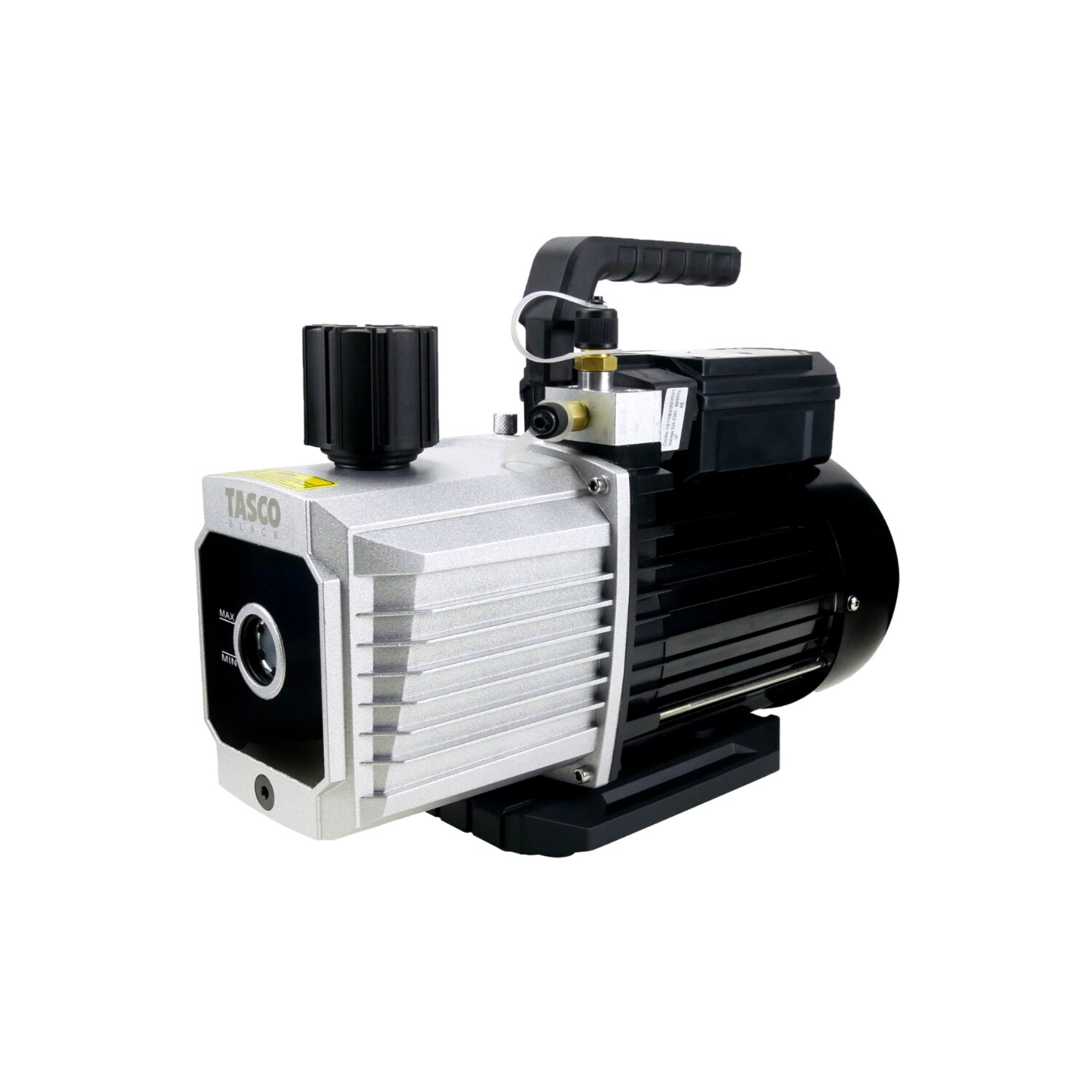

TASCO แวคคั่มปั๊ม Vacuum Pump 2 Stage 10.7 CFM รุ่น TB4XFD

TASCO แวคคั่มปั๊ม Vacuum Pump 2 Stage 10.7 CFM รุ่น TB4XFD

Specification

• Model : TB4XFD
• Rotor system : Two stage
• Motor : AC
• Drive method : Direct type
• Displacement : 301 l/min (10.7 CFM)
• Ultimate vacuum : 15 microns
• Motor 2,880 RPM
• Power supply, motor : 220V/50 Hz
• Suction port : 1/4″, 3/8″ SAE MALE WITH SOLENOID VALVE
• Amount of oil filled : 640 ml.
• Operating temperature : 5~40°C
• Size : 140 x 380 x 285 mm.
• Weight : 15.2 kg.
