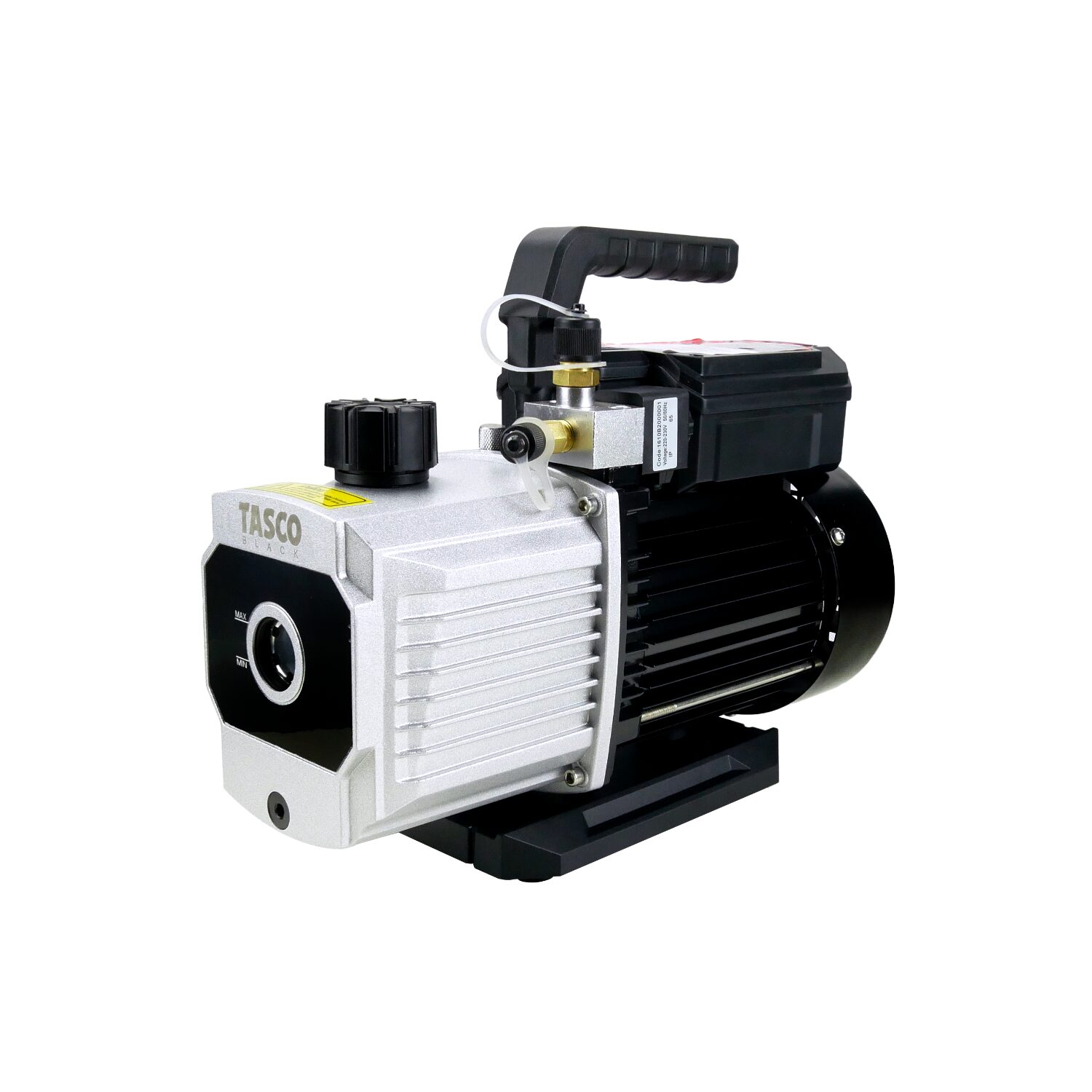

TASCO แวคคั่มปั๊ม Vacuum Pump 2 Stage 5.3 CFM รุ่น TB45ED
TASCO แวคคั่มปั๊ม Vacuum Pump 2 Stage 5.3 CFM รุ่น TB45ED
Specification
- Model : TB45ED
- Rotor system : Two stage
- Motor : AC
- Drive method : Direct type
- Displacement : 151 l/min (5.3 CFM)
- Ultimate vacuum : 15 microns
- Motor 2,880 RPM
- Power supply, motor : 220V/50 Hz
- Suction port : 1/4″, 3/8″ SAE MALE WITH SOLENOID VALVE
- Amount of oil filled : 540 ml.
- Operating temperature : 5~40°C
- Size : 130 x 348 x 272 mm.
- Weight : 10.2 kg.
