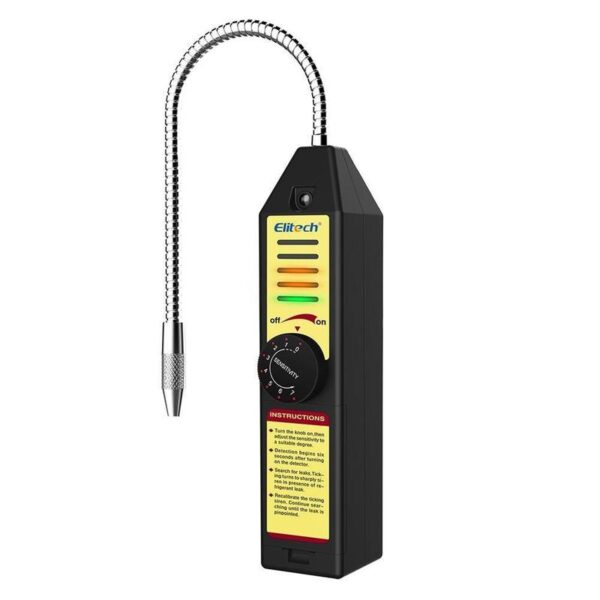

ELITECH เครื่องตรวจจับการรั่วไหลของสารทำความเย็น HVAC รุ่น WJL-6000S

banner

ELITECH เครื่องตรวจจับการรั่วไหลของสารทำความเย็น HVAC รุ่น WJL-6000S

แบรนด์

Elitech

รุ่น

WJL-6000S

ดาวน์โหลดเอกสาร

Product Manual : WJL-6000S

Description

  • Upgraded 5 LED indicators reflect gas concentration.
  • Freon leak detector triggers on R22, R134A, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs and blends.
  • 7 Adjustable Sensitivity; Maximum sensitivity is 0.21oz/yr.
  • Response within 3 seconds; Warm up in 6 seconds; Audible alarm and low battery indicator.

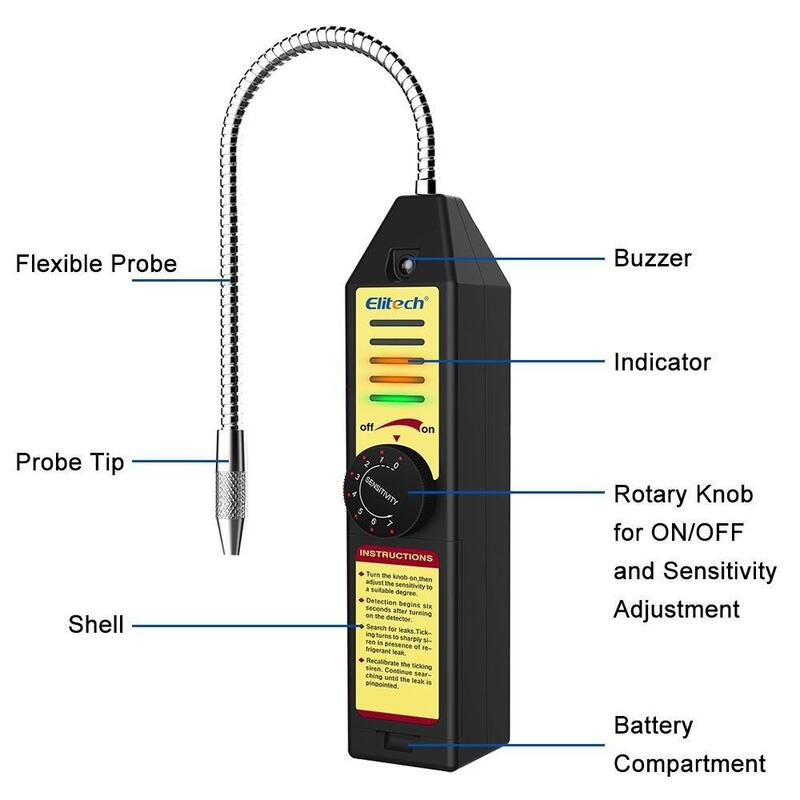

  • A flexible probe around 7.8-inch allows detections in difficult and hard-to-reach areas.
  • Audible alarm and low battery indicator: This ac leak detector features with LED light flash and buzzer alarm. Note: Green flashes mean the battery voltage is normal, suitable for the job. Orange flashes mean the battery voltage is close to the limit work and needs to be replaced asap.

Additional information

Model

WJL-6000S

Operating temperature

0℃-52℃ (30℉ to 125℉)

Maximum sensitivity

0.21oz/yr,for all halogenated refrigerants

Battery life

approximately 50 hours of normal use

Response time

Instantaneous

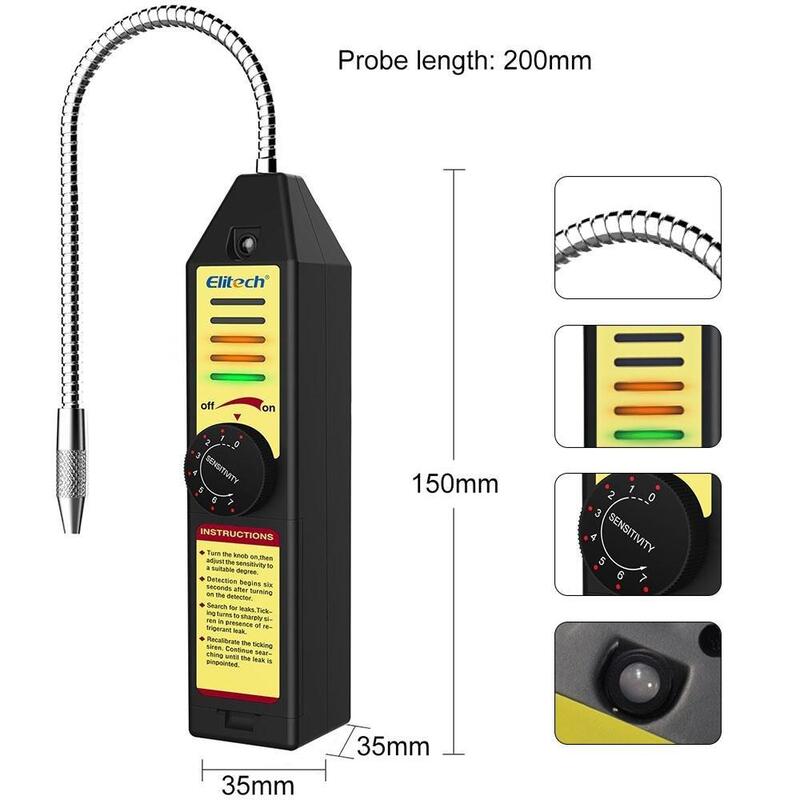

Fixed probe length

7.87 (in)

Dimensions

1.37 x 1.37 x 5.90 in
