โซลูชั่นสำหรับตู้สวิตช์บอร์ดไฟฟ้า

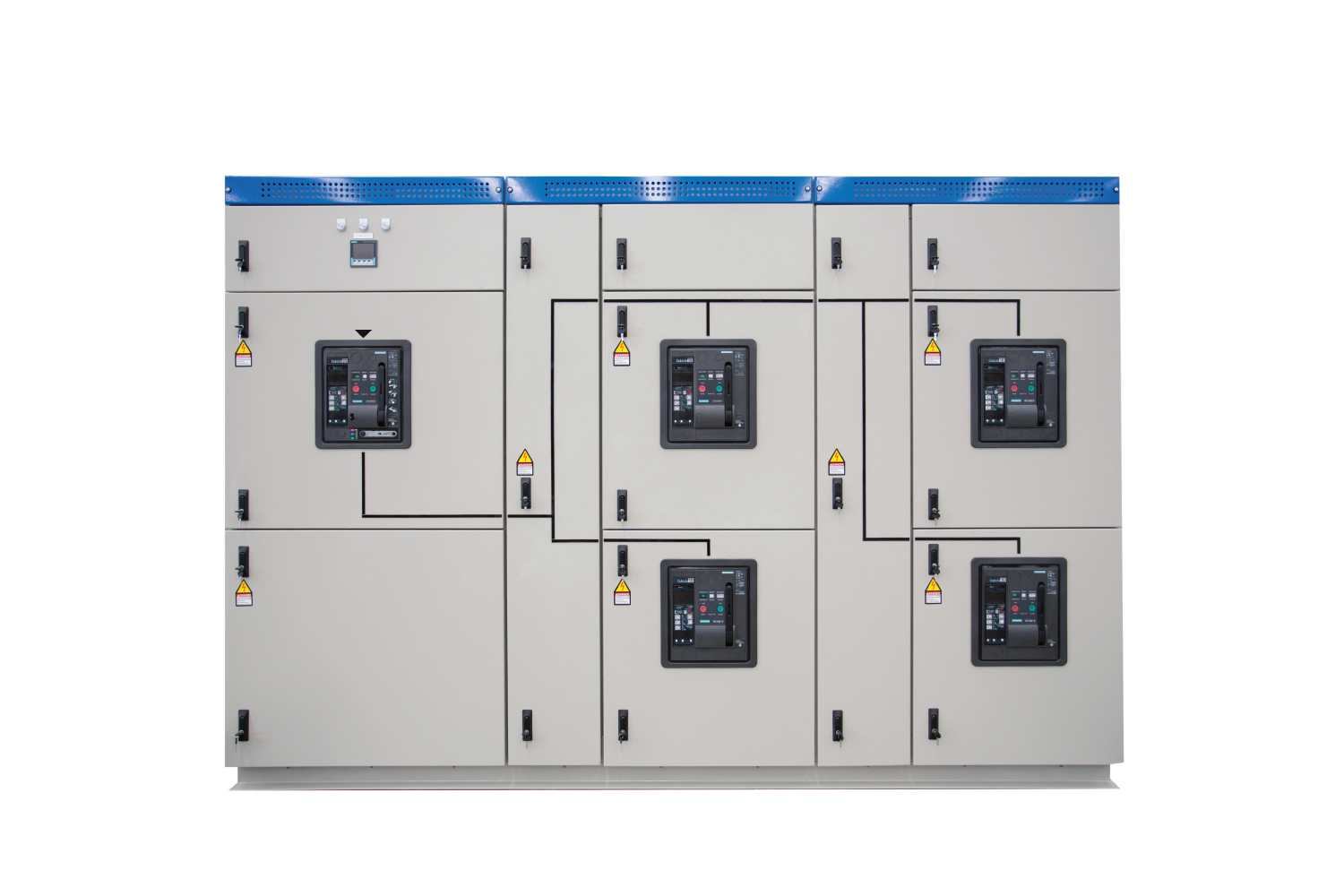

Main Distribution Boards (MDB)
Type Test Panel : IEC 61439-1, -2
Rated Voltage Ui = 1,000 V , Uimp = 12 kV
Rate Current up to 4,200 A, 3 Phase, 50Hz
Internal Separation Form 3B
Degree of Protection IP31Short-Circuit Withstand = Icc 85kA for 1 second

Main Distribution Boards (MDB)
Type Test Panel : IEC 61439-1, -2
Rated Voltage Ui = 1,000 V , Uimp = 12 kV
Rate Current up to 4,200 A, 3 Phase, 50Hz
Internal Separation Form 3B
Degree of Protection IP31Short-Circuit Withstand = Icc 85kA for 1 second

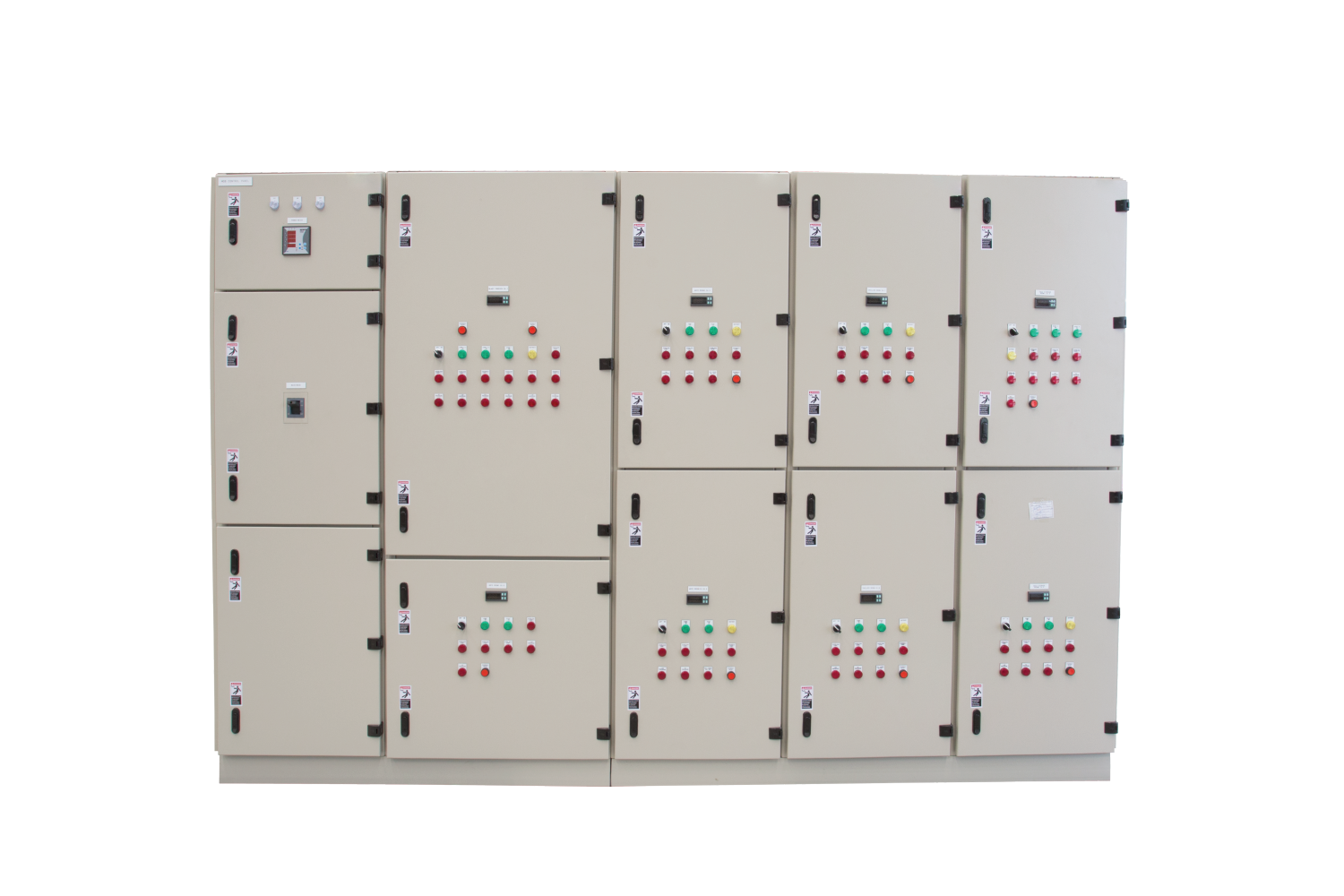

Motor Control Center (MCC)
Panel : IEC 61439-1, -2
Rated Voltage Ui = 1,000 V
Rate Current up to 1,600 A, 3 Phase, 50Hz
Internal Separation to Design
Degree of Protection to Design


Motor Control Center (MCC)
Panel : IEC 61439-1, -2
Rated Voltage Ui = 1,000 V
Rate Current up to 1,600 A, 3 Phase, 50Hz
Internal Separation to Design
Degree of Protection to Design

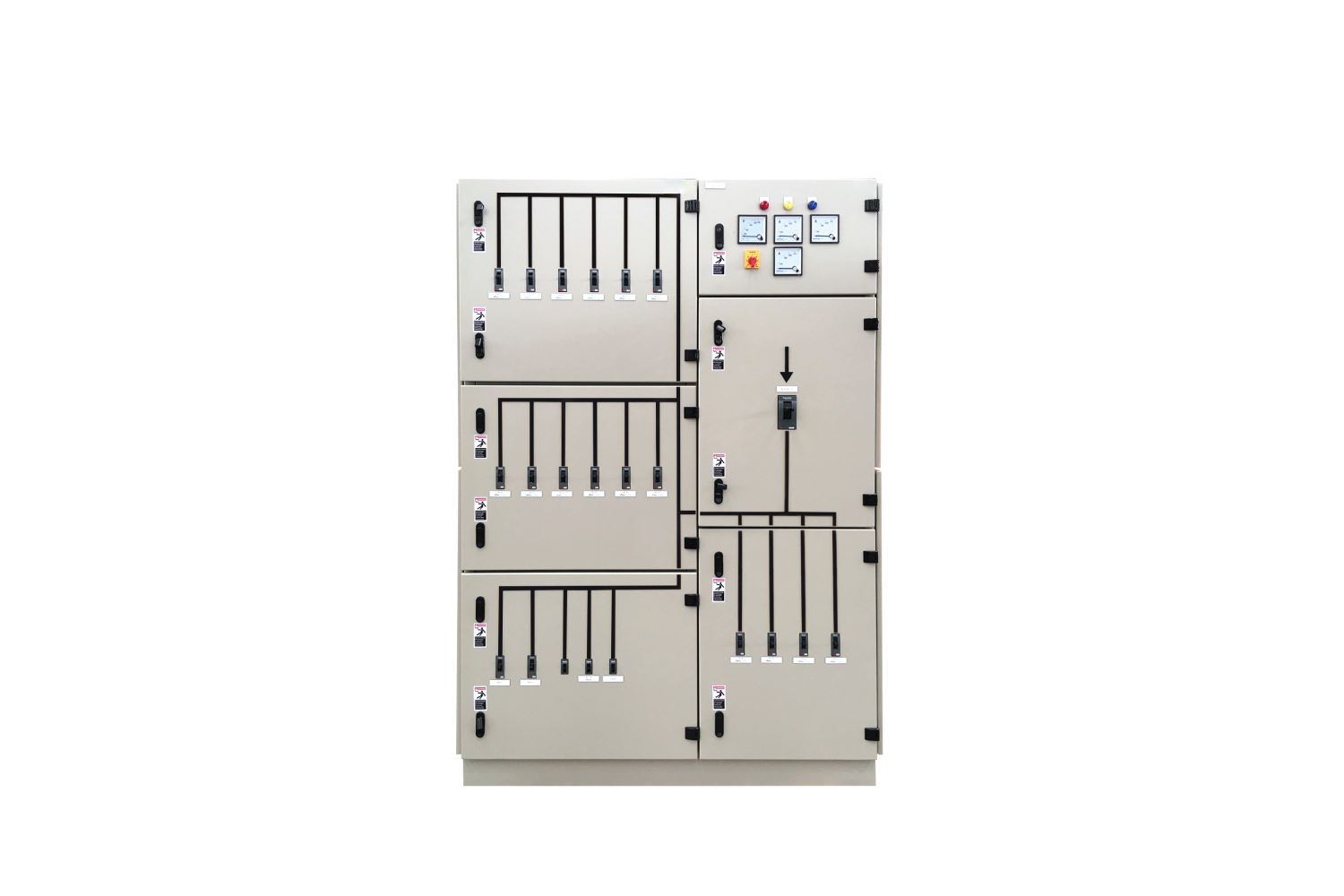

Distribution Board (DB)
Panel : IEC 61439-1, -2
Rated Voltage Ui = 1,000 V
Rate Current up to 1,600 A, 3 Phase, 50Hz
Internal Separation to Design
Degree of Protection to Design

Distribution Board (DB)
Panel : IEC 61439-1, -2
Rated Voltage Ui = 1,000 V
Rate Current up to 1,600 A, 3 Phase, 50Hz
Internal Separation to Design
Degree of Protection to Design
Load Control Panel (LCP)
Panel : IEC 61439-1, -2
Rated Voltage 690 V
Rate Current up to 250 A, 3 Phase, 50Hz


Load Control Panel (LCP)
Panel : IEC 61439-1, -2
Rated Voltage 690 V
Rate Current up to 250 A, 3 Phase, 50Hz
